RGB Payloads from RIEBOTECH
Riebo is the biggest aerial photography camera manufacturers with 200 employees and 35% of them are technical engineers. We develop, produce, and sell hardware for geospatial data acquisition systems, as well as offer data collection, processing, and application services that are both high-performance and reliable.
With core technologies in optics, inertial navigation, photogrammetry, and spatial data processing, Riebo Technology has established a reputation for delivering high-quality products and services.
RIEBO P SERIES

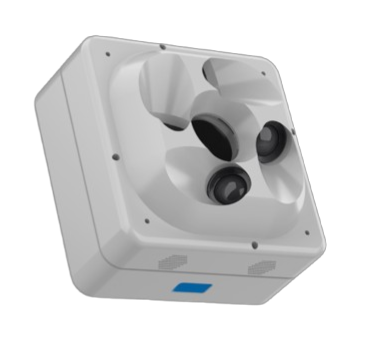

RIEBO Performance Series oblique photography camera, with advantages of high compatibility and strong environmental adaptability, is suitable for mounting on various UAVs to accomplish medium-scale oblique data collection.
P Series
Performance Selection
Perfect Balance of Performance and Compatibility
DG4P
Total Pixels - 225MP
Sensor Size - 36*24mm
Dimension - 145*145*114mm
Focal Length - 40mm/56mm
FOV (Horizontal) - 48°/36°
FOV (Vertical) - 34°/24°
Data Transfer Mode - External High-speed Module
Exposure Feedback Accuracy -10μs
Video Transmission - 4K & 1080P@30fps (5 channels)
DG6P
Total Pixels - 305MP
Sensor Size - 35.9*23.9mm
Dimension - 145*145*114mm
Focal Length - 40mm/56mm
FOV (Horizontal) - 48°/36°
FOV (Vertical) - 34°/24°
Data Transfer Mode - External High-speed Module
Exposure Feedback Accuracy - 10μs
Video Transmission - 4K & 1080P@30fps (5 channels)
DG10P
Total Pixels - 510MP
Sensor Size - 43.8*32.8mm
Dimension - 170*170*145mm
Focal Length - 50mm/75mm
FOV (Horizontal) - 47°/33°
FOV (Vertical) - 36°/25°
Data Transfer Mode - External High-speed Module
Exposure Feedback Accuracy - 10μs
Video Transmission - 4K & 1080P@30fps (5 channels)
RIEBO M SERIES
RIEBO Metric Series high cost-effective oblique photography cameras offer high-efficient acquisition of photography data and other advantages.
The M series is designed to be mounted on various UAVs, facilitating the completion of
oblique data collection.
M Series
Surveying Essentials
Basic Oblique Photography Cameras
D2M
Total Pixels - 130MP
Sensor Size - 23.5*15.6mm
Dimension - 105*105*87mm
Focal Length - 25mm/35mm
FOV (Horizontal) - 50°/36°
FOV (Vertical) - 37°/25°
Data Transfer Mode - External High-speed Module - Exposure Feedback Accuracy - 50μs
Video Transmission - 1080P@30fps
DG3M
Total Pixels - 150MP
Sensor Size - 23.5*15.6mm
Dimension - 105*105*89mm
Focal Length - 30mm/45mm
FOV (Horizontal) - 42°/29°
FOV (Vertical) - 29°/20°
Data Transfer Mode - External High-speed Module
Exposure Feedback Accuracy - 50μs
Video Transmission - 1080P@30fps (1 Channel)
DG4M3
Total Pixels - 225MP
Sensor Size - 36*24mm
Dimension - 150*150*110mm
Focal Length - 40mm/56mm
FOV (Horizontal) - 48°/36°
FOV (Vertical) - 34°/24°
Data Transfer Mode - External High-speed Module
Exposure Feedback Accuracy - 50μs
Video Transmission - 1080P@30fps (1 Channel)
DG6M2
Total Pixels - 305MP
Sensor Size - 35.9*23.9mm
Dimension - 150*150*110mm
Focal Length - 40mm/56mm
FOV (Horizontal) - 48°/36°
FOV (Vertical) - 34°/24°
Data Transfer Mode - External High-speed Module
Exposure Feedback Accuracy - 50μs
Video Transmission - 1080P@30fps (1 Channel)
RIEBO R SERIES
RIEBO medium format single lens series, featuring large sensor size and high resolution, is widely applicable for aerial survey data collection in various scenarios.
R Series
Aerial Survey Cameras
R10P
Total Pixels - 102MP
Sensor Size - 43.8*32.8mm
Dimension - 77*70*116mm
Focal Length - 35/50/75mm
Weight - 360g
Min. Exposure Interval - 0.5s/1.2s
Max Data Transfer Speed - 300MB/s
Max Image Size - 78MB
R15P
Total Pixels - 150MP
Sensor Size - 53.4*40mm
Dimension - 98*90*126mm
Focal Length - 50mm
Weight - 550g
Min. Exposure Interval - 0.5s/1.2s
Max Data Transfer Speed - 300MB/s
Max Image Size - 117MB
R10Pros
Total Pixels - 102MP
Sensor Size - 43.8*32.8mm
Dimension - 77*70*116mm
Focal Length - 35/50/75mm
Weight - 380g
Min. Exposure Interval - 0.5s
Max Data Transfer Speed - 300MB/s
Max Image Size - 96MB
R15Pros
Total Pixels - 150MP
Sensor Size - 53.4*40mm
Dimension - 98*90*126mm
Focal Length - 50mm
Weight - 600g
Min. Exposure Interval - 0.5s
Max Data Transfer Speed - 300MB/s
Max Image Size - 144MB
RIEBO DAC SERIES
Riebo Digital Aerial Camera, featuring high pixel count, long focal lenght, and high reliability, suitable for mounting on large UAVs or manned aircraft Platforms, to complete large-scale oblique data collection in urban areas.
RIEBO DAC SERIES
Digital Aerial Camera
DAC10
Total Pixels - 510MP
Sensor Size - 43.8*32.8mm
Dimension - 170*170*145mm
Focal Length - 50mm/75mm
FOV (Horizontal) - 47°/33°
FOV (Vertical) - 36°/25°
Data Transfer Mode - External High-speed Module
Exposure Feedback Accuracy - 10μs
Video Transmission - 4K & 1080P@30fps (5 channels)
DAC6
Total Pixels - 305MP
Sensor Size - 35.9*23.9mm
Dimension - 148*148*132mm
Focal Length - 50mm/75mm
FOV (Horizontal) - 40°/27°
FOV (Vertical) - 27°/18°
Data Transfer Mode - External High-speed Module
Exposure Feedback Accuracy - 10μs
Video Transmission - 4K & 1080P@30fps (5 channels)
DAC4
Total Pixels - 225MP
Sensor Size - 36*24mm
Dimension - 148*148*132mm
Focal Length - 50/75mm
FOV (Horizontal) - 40°/27°
FOV (Vertical) - 27°/18°
Data Transfer Mode - External High-speed Module
Exposure Feedback Accuracy - 10μs
Video Transmission - 4K & 1080P@30fps (5 Channel)
RPX
Weight - 150g
Voltage Range - DC9-30V
Dimension - 93.5*65*23.9mm
Power Consumption - 4.5w
Number of Antennas - 2
Max Event Input Frequency - 50Hz
Minimum Signal Strength - 32dB
Position - 2~5cm
Roll & Pitch - 0.025°
Heading - 0.08°
RIEBO INSPECTION CAMERA
The "Inspection Management" step integrates all collected data into a centralized platform, ensuring seamless oversight and effective management of the inspection process. It allows for easy access to report, real-time tracking, and efficient workflow coordination. This comprehensive management system helps ensure data integrity, supports decision-making, and facilitates proactive maintenance strategies.
RIEBO
Inspection Camera
SF10
Total Pixels - 103MP
Resolution - 11276（H）*9200（V）
Sensor Sizes - 36.1 mm x 29.4 mm
Focal Length - 75mm/120mm
Camera Weight - ≤720g
Shutter Speed - 1/16000
Sensor Type - CMOS Global Shutter
Digital Zoom - 1x 4x 8x 16x 32x 64x
Camera Memory - 256GB
Parameter Adjustment Method -
DJI Remote Controller/Bluetooth/Serial port
SF6
Total Pixels - 65MP
Resolution - 9344（H）*7000（V）
Sensor Sizes - 29.9 mm x 22.4 mm
Focal Length - 250mm
Camera Weight - ≤1200g
Shutter Speed - 1/16000
Sensor Type - CMOS Global Shutter
Digital Zoom - 1x 4x 8x 16x 32x 64x
Camera Memory - 256GB
Parameter Adjustment Method -
DJI Remote Controller/Bluetooth/Serial Port
X2
Camera Weight - ＜850g
Dimension - 180mm*188mm*198mm
Camera Memory - 256GB
Total Pixels - 24MP
Number of Sensors - 1PCS
Sensor Size - 22.3mm*16.7mm
Resolution - 6240px*4808px
Focal Length - 16mm
The Minimum Focusing Distance - ≤10m
Lens Diaphragm - F5.6
RIEBO OEM PRODUCT CATEGORY
The "Inspection Management" step integrates all collected data into a centralized platform, ensuring seamless oversight and effective management of the inspection process. It allows for easy access to report, real-time tracking, and efficient workflow coordination. This comprehensive management system helps ensure data integrity, supports decision-making, and facilitates proactive maintenance strategies.
RIEBO
OEM Camera
R4/R6
Total Pixels - 61MP/45MP
Dimension - 60*60*84mm
Camera Weight - 205g
Exposure Time Interval - 1s
Shutter Speed - 1/100~1/2000s
Camera Memory - 256GB*2
Data Transfer Mode - TF Card/USB
Exposure Feedback Accuracy - 50μs
Parameter Adjustment Method - USB/Serial port
R2
Total Pixels - 26MP
Dimension - 60*60*92mm
Camera Weight - 240g
Exposure Time Interval - 0.5s
Shutter Speed - 1/100-1/2000s
Camera Memory - 128GB*2
Data Transfer Mode - TF Card/USB
Exposure Feedback Accuracy - 50μs
Parameter Adjustment Method - USB/Serial port
